Georgian Square Decorative Brass Grilles

Natural Brass Examples:

Back to Natural Brass Examples

Back to Plated Brass Examples

Click Here for an Instant Online Quotation

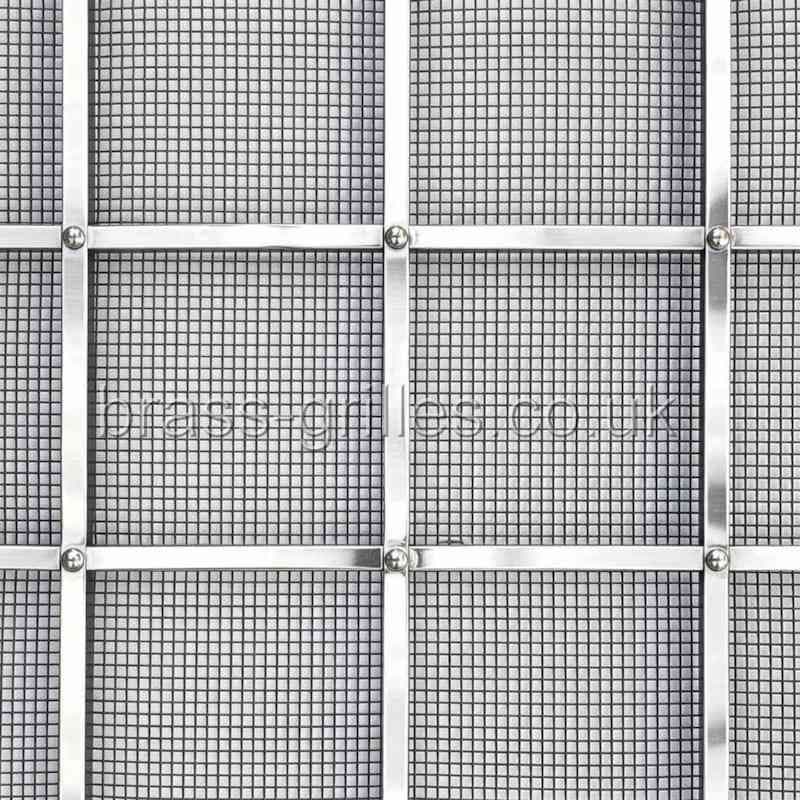

The pictures above are examples of possible combinations of square size, rosettes, backing mesh and finish.
If you cannot see your desired Georgian grille above, you can specify your preference using the following notation:
Square Finish / Square Size / Rosette Style and Layout / Backing Mesh Choice and Backing Finish
(See example grille references above. Our calculator will provide this reference with your quotation.)

Georgian Natural Brass = GGB
(Natural brass is a satin brass finish with a clear lacquer protection unless requested otherwise.)

(Unless specially agreed otherwise, rosettes / rivets will always be the same finish choice as the square.)

(Squares are measured between two parallel bars)

25mm

41mm

54mm

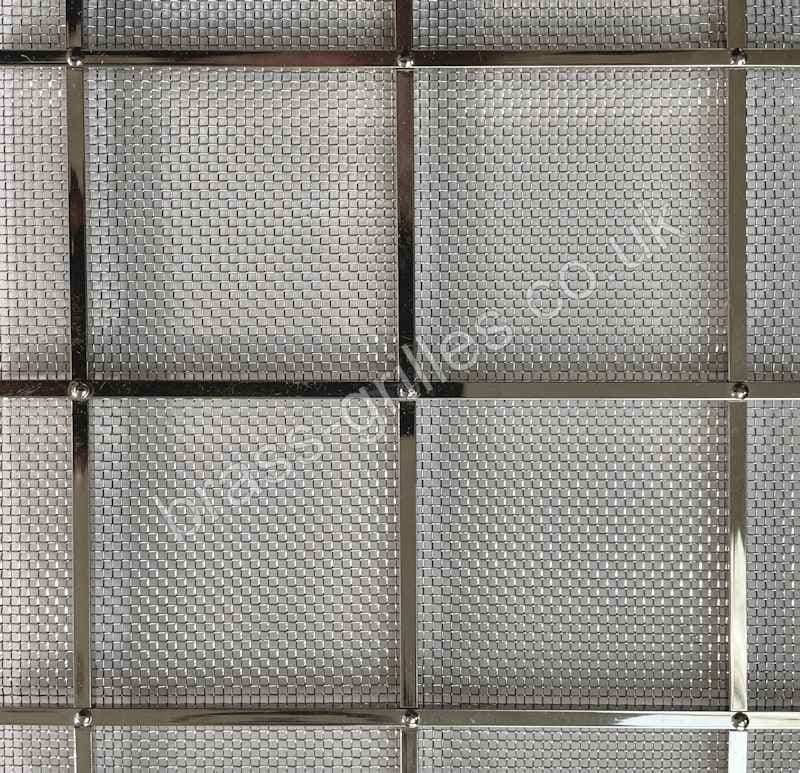

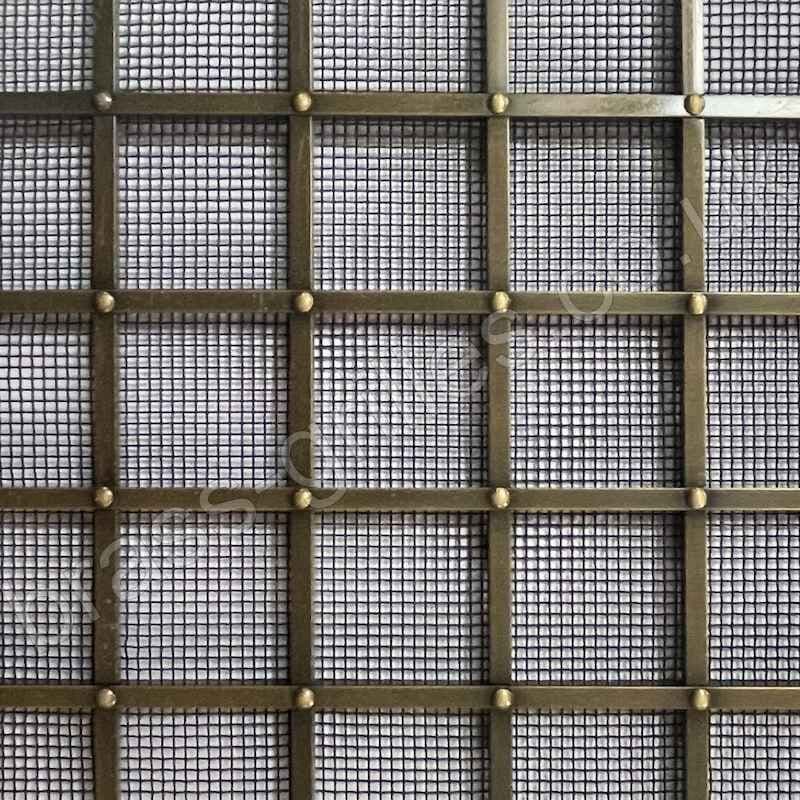

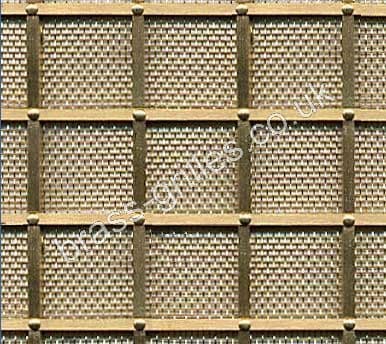

All Rivets = RIV

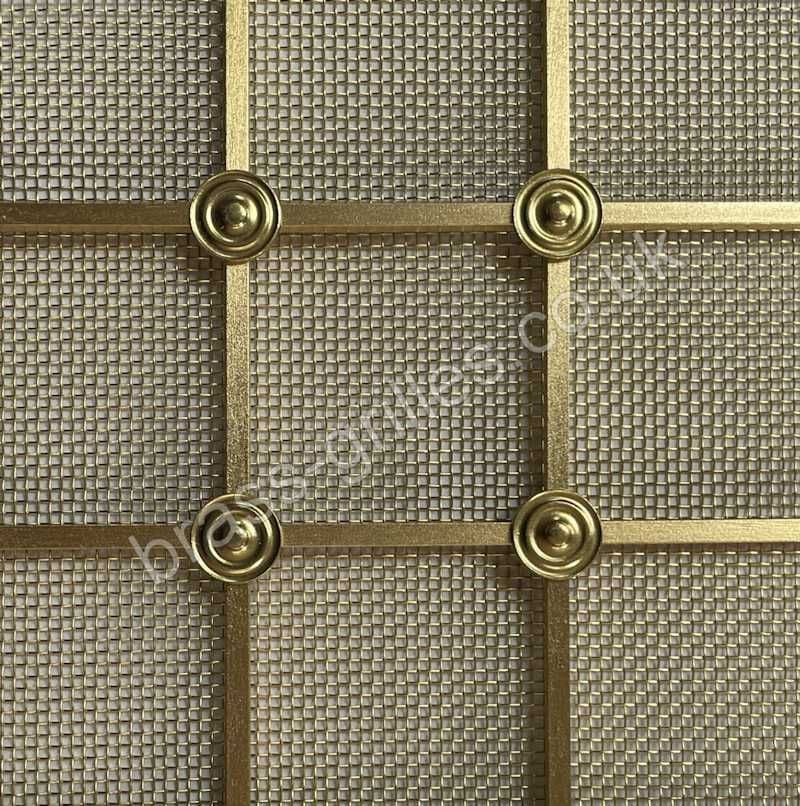

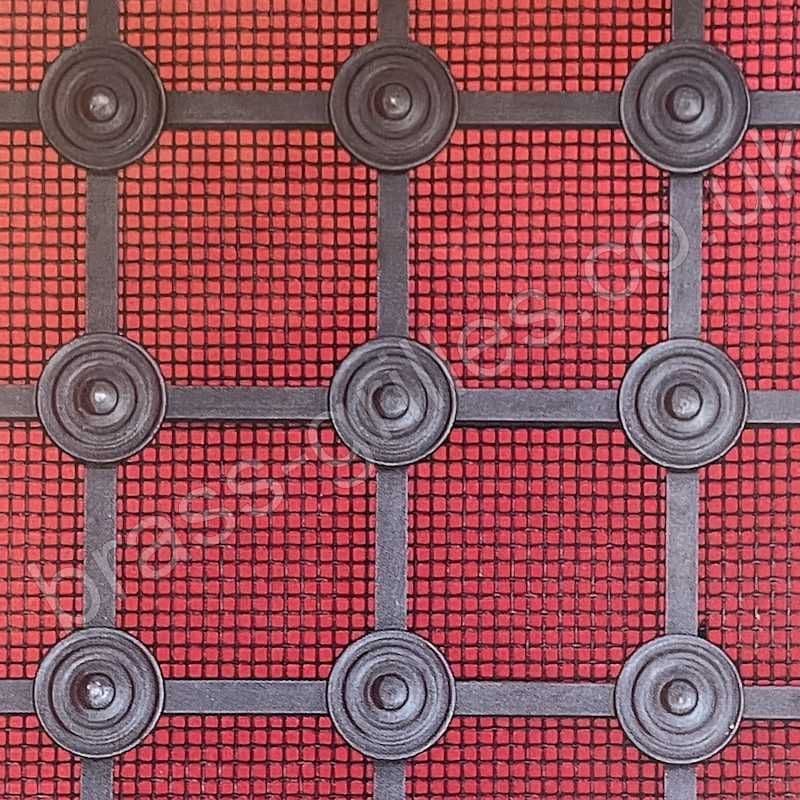

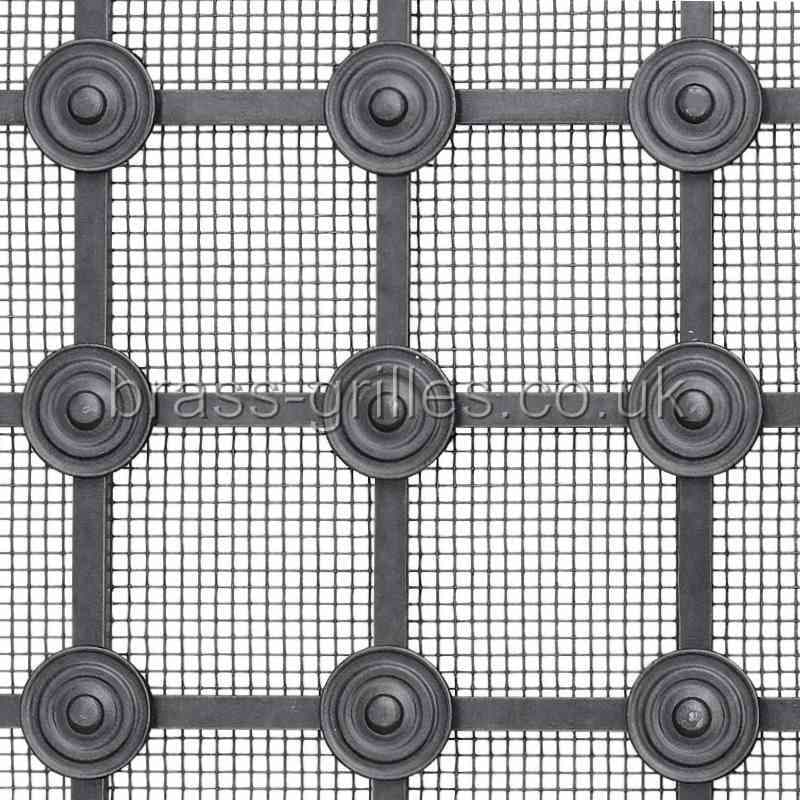

All Plain = PLR

Alternate Plain = APLR

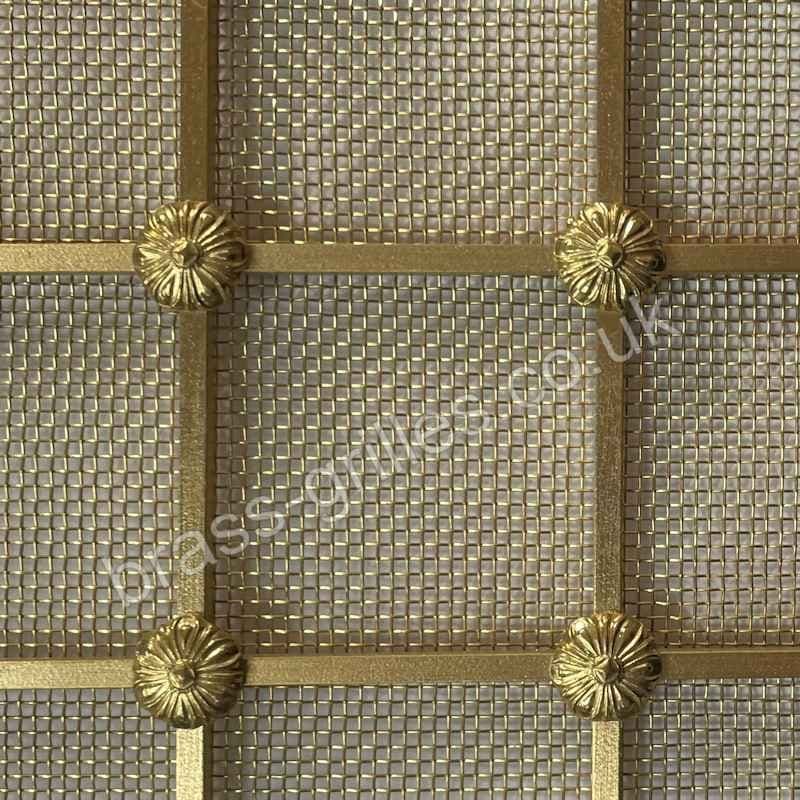

All Floral = FLR

Alternate Floral = AFLR

* All Honeycomb = HOR

* Alternate Honeycomb = AHOR

 * These rosette types are only available for natural brass grilles.

Georgian square grille alternate rosette placement is not on an alternate line basis as with Regency diamond grilles but on a "hit and miss" basis.
On each horizontal line there will be rosette, then rivet, then rosette, then rivet.
The line below will be offset to interleave this as shown below:

No Mesh = NM

Fine = FM
(Also sold separately and can be viewed here)

Large = LM
(Also sold separately and can be viewed here)

Please Note that backing meshes do not match the foreground square finish for all design combinations.
E.g. an all Antique Brass grille will have an even dark brown backing mesh and an all Antique Copper grille backing mesh is an even black.
Please see the descriptions in the left column labelled "Choose Square Finish".
(Only when the foreground square and backing mesh differ will the backing finish be as described as it can be processed individually before attaching.)

Notes:
Plating and treatments such as chrome plating or antiquing are processes applied to the solid brass grille, increasing price and delivery time.

Maximum Dimensions:
1600mm x 900mm

Notes:
Georgian natural brass grilles are treated with a fine clear lacquer to enhance and maintain their appearance unless requested otherwise.

Notes:
Georgian natural brass grilles are treated with a fine clear lacquer to enhance and maintain their appearance unless requested otherwise.

Additional Information - General Technical, Construction and Fitting:

• Maximum Dimensions: The maximum size we can manufacture any Georgian square grille is 1600mm x 900mm.
• Symmetry / Alignment: Georgian brass grilles are manufactured symmetrically about the horizontal and vertical centre lines. Same design grilles will therefore pattern match when fitted adjacent to each other along the same centre line (when manufactured on the same order).
• Sizing: Your decorative grille will be manufactured to the size requested. We do not add any additional amount to fix through at the edges to secure behind your opening. You will need to include this in your required dimensions. (We would recommend approx. 10 to 15mm all around, in a typical application.)
• Size Tolerances: Grilles are manufactured to a tolerance of +/- 2mm per supplied dimension.
• Depth: The depth of this grille at the edge, is approx. 5mm, depending on your style choices. (3mm square brass rod + mesh backing at 0.5mm or 1mm (fine/large) + a possible rivet head with it's turned down pin at the rear. Total = approx. 5mm). At the point of a rosette, depth is approx. 6mm.
• Fixing / Rebates/ Rabbets: To allow flush fixing behind an aperture, rosettes are replaced by rivets if they would fall within approx. 20mm of the grille edge. (If you have a specific rebate/rabbet, this can be mentioned in the order form Comments box and we will set rosettes outside of this area.)
• Installation: To install, simply use a small screw and washer though the backing mesh at the rear edge, at approx. 40mm intervals. There is no need to rebate the grille behind the opening unless the rear will be visible and you wish to provide a neater finish. You may however, fit how you wish. No fixings, beading or framing is supplied. Grille edges are left as "raw" cut edges and are not intended for display.
• Finishes Note: Some finishes are applied by hand and therefore slight variations in shade may occur between orders placed at different times.
• Clear Lacquering: All natural brass grilles are sprayed with a fine clear lacquer to resist tarnishing and maintain appearance unless specifically requested otherwise. (This can be noted in the Comments box of our order form)
• Construction: This style of grille has one displayable face and is constructed using traditional methods. The rear of the grille contains pins from your chosen rosette/rivet which secure the lattice construction and hold the backing mesh in place (if specified). Rosette/rive pins by design have points which are turned down flush to the rear. This may be a consideration for you depending on your application.
  Depending on the design, not all pins may penetrate the backing mesh which is due to the stages required in the build up of the product and is normal.

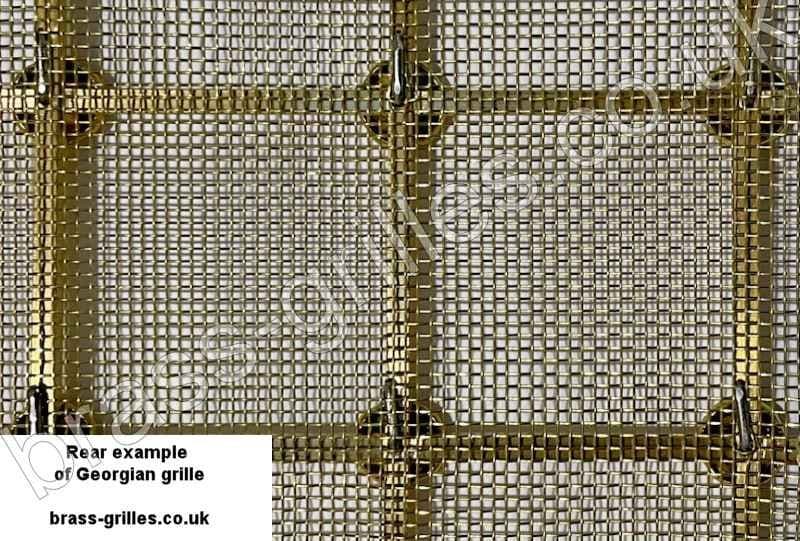

  Please CLICK HERE to view the rear of an example Georgian brass grille.
