Antique Brass Grille Honeycomb with Large Mesh Backing - Made to Order

This grille is made to your requested size. The brass mesh is attached to the rear of the grille with solder.

Ideal for use in radiator covers, cabinet and door panel inserts, custom ventilation and general interior decorative screening uses.

This grille is a custom combination of the following two solid brass items which are then antiqued:
Perforated Natural Brass Honeycomb
Brass Large Mesh

(Alternative styling options for this product shown below.)

(This product is an example within our perforated brass grille range and can be modified at our pricing calculator.)

Notes:

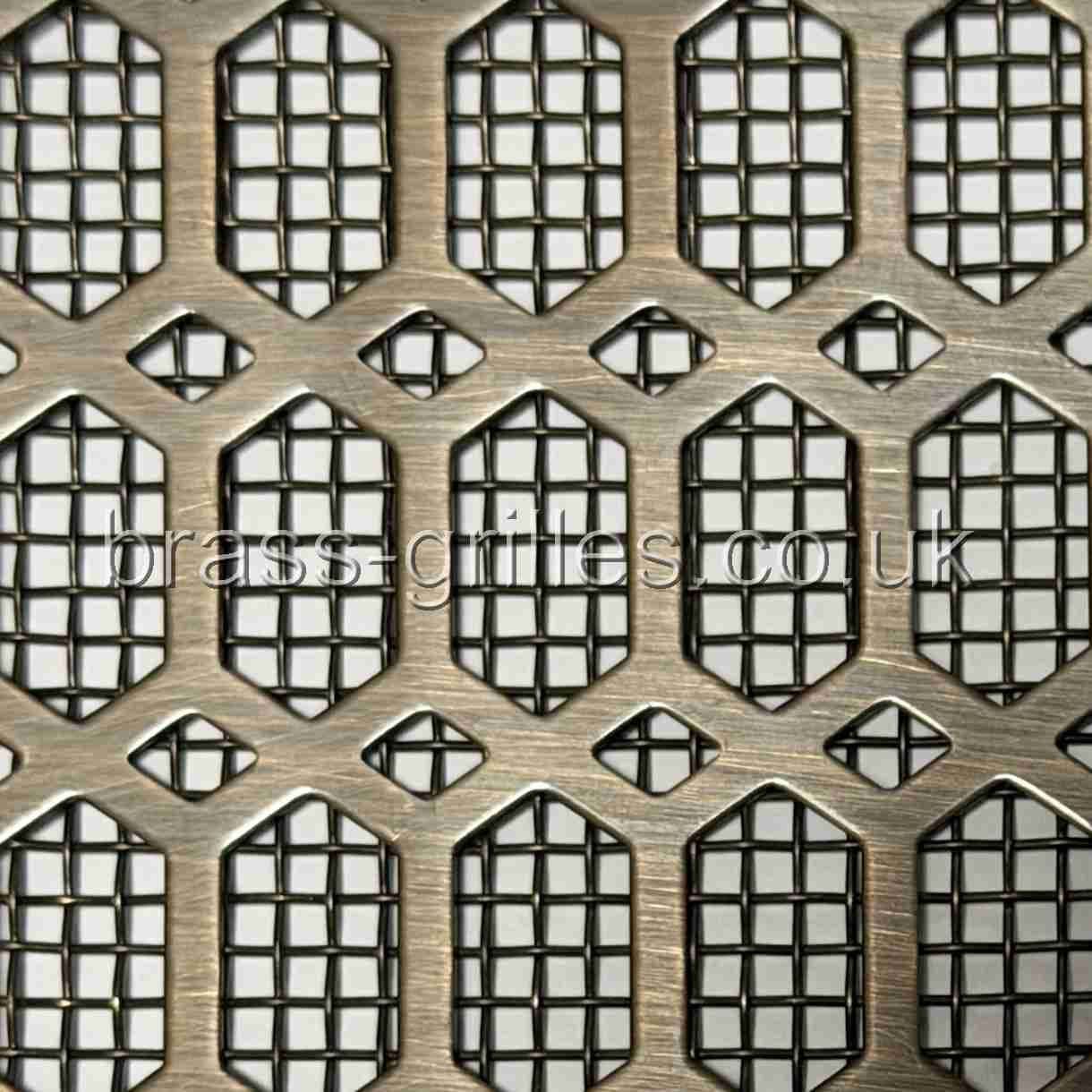

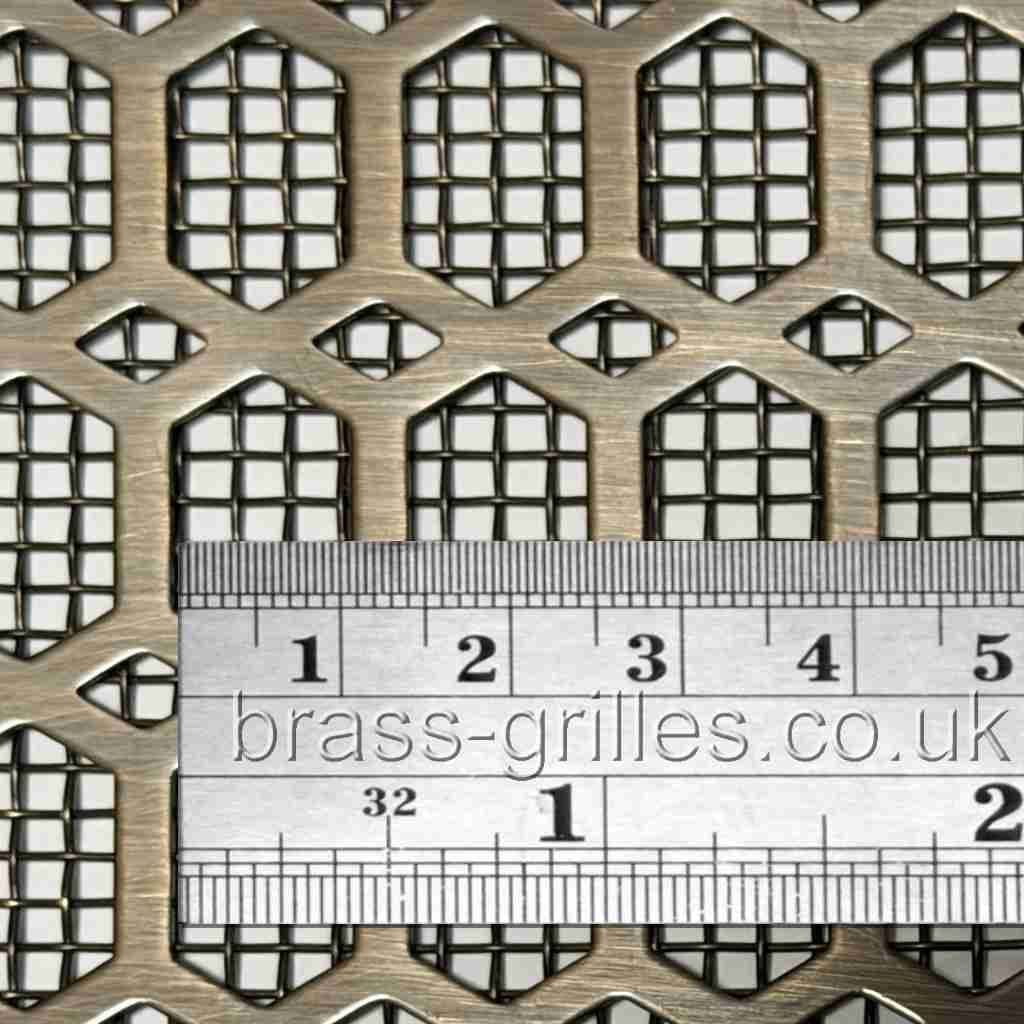

• Pattern Design: 10mm wide x 20mm tall opening in a honeycomb design + large mesh backing. Approx. 38% open.
• Finish Description: Antique brass is a dark brown finish with flecks of natural brass showing through. The backing mesh is dark brown.
• Maximum Size Available: 1830mm x 910mm
• Overall Grille Thickness: Approx. 0.7mm foreground + approx. 0.6mm backing mesh = approx. 1.3mm
• Displayable Faces: One displayable face.
• Dispatch Timescale: Usually in 2 to 3 weeks.
• Frequently Asked Questions


• Sizing: Your grille will be manufactured to the size requested with a tolerance of +/- 2mm. We do not add any additional amount to fix through at the edges to secure behind your opening. You will need to include this in your required dimensions. (We would recommend approx. 10 to 15mm all around, in a typical application.
• Installation: To install, simply use a small screw and washer through the pattern at the rear edge, at approx. 40mm intervals. There is no need to rebate the grille behind the opening unless the rear will be visible and you wish to provide a neater finish. You may however, fit how you wish. No fixings, beading or framing is supplied.
  Edges: Grilles are all pattern to the edge. (We cannot state which part of the pattern will become the edge.) Grille edges are left as "raw" cut edges and are not intended for display.
• Symmetry / Alignment: Grilles are made symmetrically about the horizontal and vertical centre lines. Same design grilles will therefore pattern match when fitted adjacent to each other along the same centre line (when manufactured on the same order).
• Finishes Note (if applicable): Some finishes are applied by hand and therefore some variation in shade may occur from our images and orders placed at different times.
